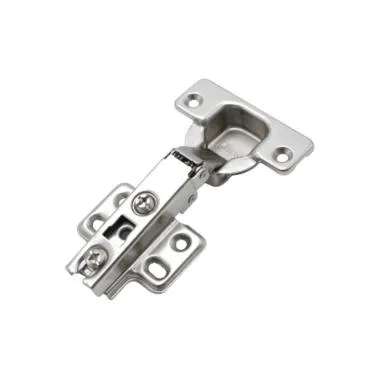

auto CLOSE SCREW-ON

Special Purpose Hinge with Precision Engineering for Unique Applications | Screw-On with 30° Face Angle | Full Overlay Cabinet Hinge

OEC35-F2S STD NP

Face angle hinge with screw-on mounting for custom cabinet angles. Perfect for corner and uniquely designed units.

Item Code : -F2S-STD-NP

-E2S-STD-NP -F2S-STD-NP

Finish : Nickle Plated

Get a Quote

30° face angle hinge for 120° angled furniture with an auto-close mechanism
Screw-on mounting plate with 2 hole design for firm fixation
Tested for 40,000 cycles & 24 hours salt spray

Tested for 50,000 cycles for lasting durability
24 hours salt spray tested for corrosion resistance
Auto Close

Door Thickness
14-22mm
Opening Angle
95°
Cup Dimensions
35mm diameter
Cup Height
11.3mm
2D Adjustment
Overlay: +2mm / -4mm Depth: ±2mm
Functional Warranty
5 Years
Surface Warranty
12 Months

Special Purpose Screw-On Face Angle Hinge is crafted for unique cabinet designs where doors meet at specific angles. Ideal for corner units and custom cabinetry, this hinge allows precise face-to-face alignment. The screw-on mechanism ensures firm and easy installation, while its angular configuration supports smooth movement and a clean aesthetic. A reliable solution for tailored applications.
