Morphy

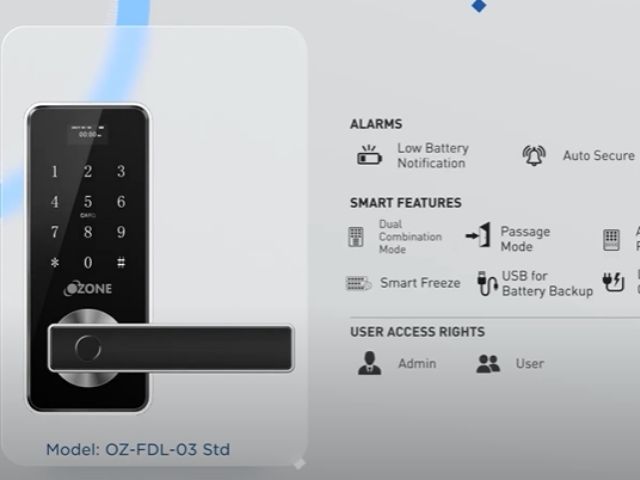

OZ-FDL-03 Std Black/SC
- Material of Lock: Zinc Alloy
- Material of Lock Body: SS304
- Front Panel Size: 170*70*20mm
- Back Panel Size: 170*70*20mm
- Weight: 2.5KG

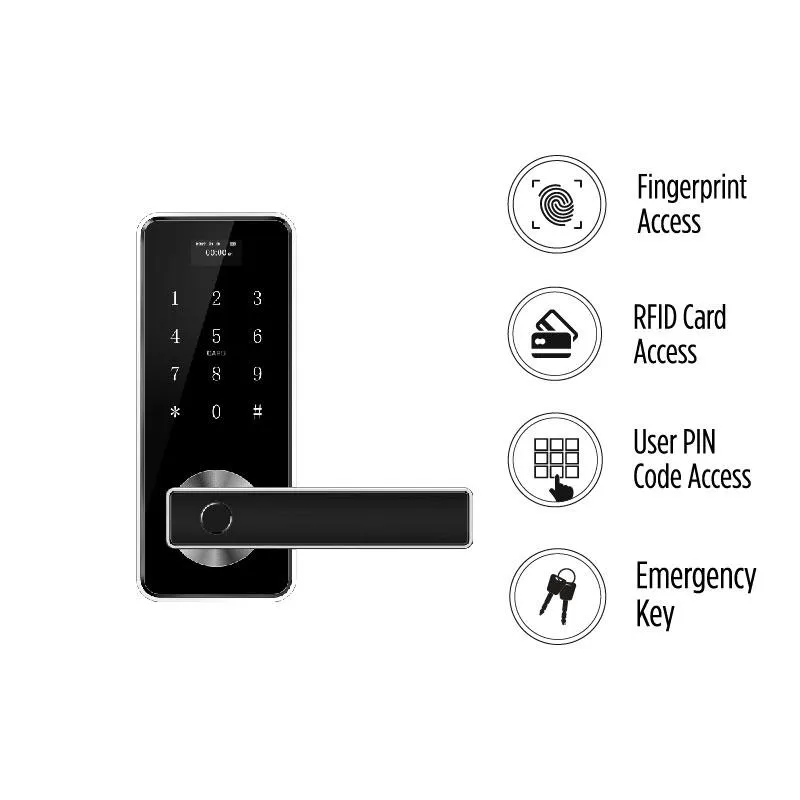

- Access Modes: Fingerprint, Password, Card, Mechanical key
- Color Options: Black
- Compatible Door Type: Wooden door
- Working Voltage: 6V/8x (AAA Batteries)
- Door Thickness: 35-60mm
- Storage Capacity: 1000 RFID card + Password , 200 Fingerprints
- Working Temperature: (-25?-60? )
- Working Humidity: 20%-90%
- Low Voltage Alarm: Less than 4.5V
- Semiconductor fingerprint sensor(508dpi)
- Passage mode function
- Universal handle
- LCD screen display Date & Time, User ID access & User unlock records
- Auto secure & break-in alarm
- Auto locking time setting function
- Anti-theft Password
- Smart freeze
- Emergency power supply through USB
- Voice guided operation
- Dual combination mode
- Volume setting function
ideally used for Main & Internal wooden doors for maximum thickness 60mm
| Front Panel | 1Nos. |
| Back Panel | 1Nos. |
| User Manual | 1Nos. |
| Mortise (Lock Body) | 1Nos. |
| Strike Plate | 1Nos. |
| Strike Box | 1Nos. |
| Mechanical Key | 2Nos. |
| Card | 3Nos. |
| Fixing Screws 1 (For Battery Cover) | 1Nos. |
| Opposite Pull Screw | 3*1Nos. |
| Sliding Screw | 2Nos. |
| Sliding Screw Casing | 2Nos. |
| Pointed Screw (For Wooden Door) | 4Nos. |
| Waterproof Rubber Plate | 2Nos. |
| Cutout Template | 1Nos. |
| Battery | 8Nos. (AAA Batteries) |
