Linea Slim Frame (4507) Synchronised Sliding System (2+2)

Spacer For Track Alignment (with Double-Sided Tape)

Linea Slim Frame (4507) Synchronised Sliding System (2+2) | Finish: Black Matt

OSTF7F-SYN-SYS-2+2, 3.5MX3M BM

Color : BM

BL-LX-G BM Phantom Grey Tan Brass VBL-B Vintage Brass Brush Rose Gold Luxe Brush

Size : 3.5M X 3M

3.5M X 3M 4.7M x 3M

Get a Quote

Functional Video

Soft-open & soft-close mechanism
Frontal view with a 7mm visible side with featuring a bevel look
Standard profile size 45x7mm
Ceiling-mounted system
No bottom track ensures a clear passage without obstruction
Adjustment for door & fixed panel possible, even after installation
No gap between the fixed panel & fIoor
Tested upto 3,00,000 cycles
Easy-to-fabricate
Easy-to-install

Door Configuration
2 Fixed + 2 Sliding Doors
Maximum Door Width
1.2 Meter
Maximum Door Height
3 Meter
Frontal View
7 mm Visible Side
Load Carrying Capacity
120 kg

Effortless Synchronised Operation
Seamless Performance
Sleek and Elegant Design
Low Maintenance Aluminium Frame

Vintage Brass Luxe Brush
Black Luxe Glossy

Home, Offices & Institutions

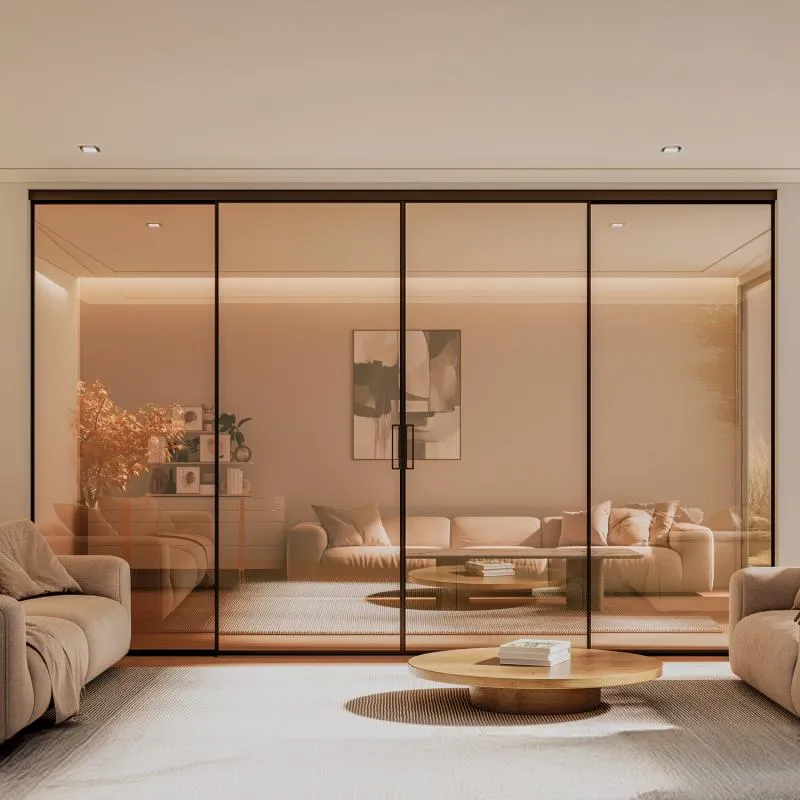

The Linea Slim Frame Synchronised Sliding System (2+2) is a cutting-edge internal partition solution that combines advanced mechanism design with modern aesthetics. Perfect for homes, offices, and institutions, it offers a seamless way to divide spaces while maintaining openness and style.

With a 7mm visible frontal profile and a refined bevel finish, this system delivers a sleek, contemporary appearance. Built with a standard 45x7mm aluminium profile, it complements a variety of modern interiors.

The synchronised sliding mechanism ensures that both sliding doors move simultaneously, offering effortless operation and balanced movement. The soft-open & soft-close feature enhances user comfort, while the ceiling-mounted design removes the need for a bottom track, creating clear, unobstructed floor space.

This configuration features 2 fixed panels + 2 synchronised sliding doors, each supporting a maximum width of 1.2m, height of 3m, and weight capacity of 120 kg. Built for long-term durability, it has been tested for up to 300,000 cycles. Adjustments to both sliding and fixed panels can be made even after installation, ensuring perfect alignment.
